A bad speed sensor can trigger warning lights, erratic speed readings, ABS/traction control problems, and—on many vehicles—rough shifting or delayed upshifts. The key is identifying which sensor is failing (wheel speed sensor vs vehicle/transmission speed sensor) because the symptoms and test steps are different. Below is a quick symptom-to-cause table and a simple checklist to confirm the fault before replacing parts.
About Your Speed Sensor
When a transmission speed sensor goes bad, it can cause a variety of issues with your vehicle’s transmission and overall performance. The function of the transmission speed sensor is to track the speed of the vehicle’s output shaft and transmit this data to the engine control unit (ECU).
What is a speed sensor？

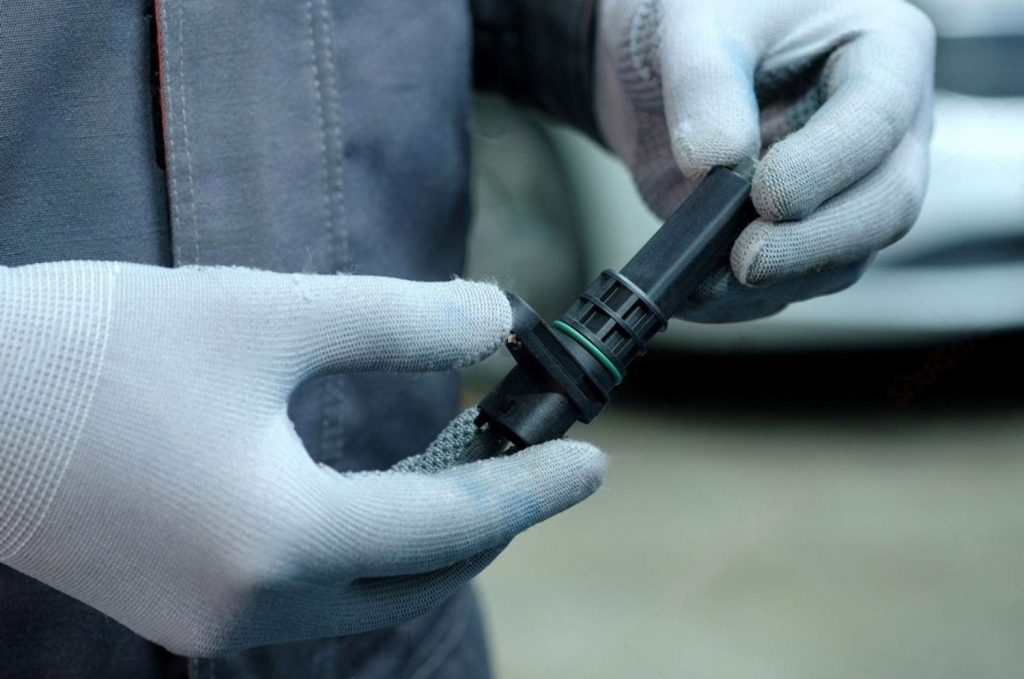

A rotational velocity detector is a digital component designed to gauge the rotational speed of a moving part, including wheels, axles, or gearboxes.It converts the rotational speed into an electrical signal, which is then sent to a vehicle’s control systems (e.g., the engine control unit (ECU), transmission control module (TCM), or dashboard instruments) for processing and action.
Where is the speed sensor located？
- refer to the vehicle manual to determine the exact location of the sensor.
- speed sensors are usually located near rotating parts such as wheels, axles or shafts, and you can look for them in this neighborhood.
- Speed sensors are connected to electrical plugs, so they can be easily located by following the wiring harness of the ABS module, gearbox or engine.
If you’re not sure exactly where the speed sensor is on your car, the easiest thing to do is to flip through the repair manual or ask a professional technician.
Bad speed sensor symptoms
Below you will find the common symptoms of a malfunctioning speed sensor:

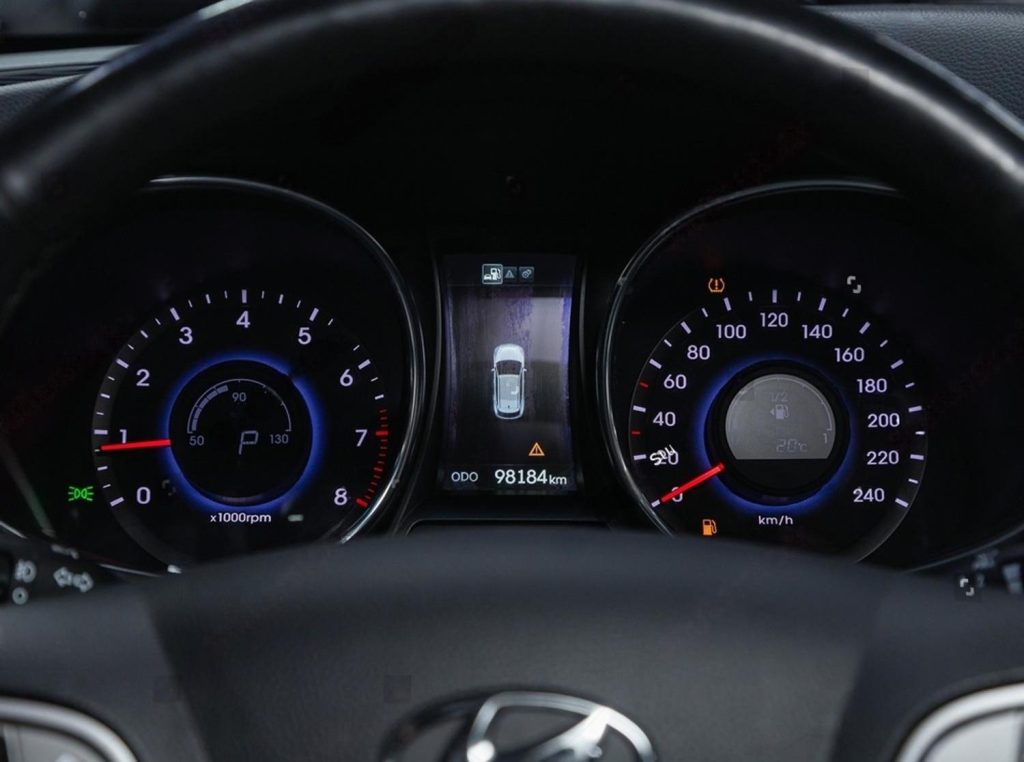

- Abnormal Speedometer Readings
- Speedometer Not Working or Inaccurate: A faulty speed sensor may cause the speedometer to stop functioning or display incorrect speeds.
- Speedometer Needle Fluctuating: Unstable sensor signals can cause the speedometer needle to jump or fluctuate.
- Transmission Shifting Issues
- Delayed or Rough Shifting: The transmission relies on speed sensor data to determine shift timing. Sensor failure can cause delayed, rough, or failed shifts.
- Transmission Enters “Limp Mode”: Some vehicles may lock the transmission into a single gear to protect the system when a speed sensor fault is detected.
- ABS or Traction Control System Malfunction
- ABS Warning Light Illuminates: Speed sensor failure can cause the ABS system to malfunction, triggering the warning light.
- Traction Control System Failure: Inaccurate speed sensor data can prevent the traction control system from properly managing wheel slip.
- Cruise Control Failure
- Cruise Control Fails to Engage or Suddenly Disengages: Speed sensor failure can prevent the cruise control system from obtaining accurate speed data, causing it to fail or disengage unexpectedly.
- Engine Performance Issues
- Engine Stalling or Difficulty Starting: In some vehicles, speed sensor Information is of fuel delivery and spark ignition. Sensor failure can cause the engine to stall or make it difficult to start.
- Reduced Power or Increased Fuel Consumption: Speed sensor failure can prevent the ECU from optimizing fuel injection, affecting engine performance and fuel efficiency.
- Vehicle Stability Problems
- Vehicle Skidding or Loss of Control: If the speed sensor failure causes the ABS or Electronic Stability Program (ESP) to malfunction, the vehicle may lose stability during emergency braking or cornering.
- Warning Lights Illuminate
- Check Engine Light Turns On: Speed sensor failure often triggers the vehicle’s diagnostic system, causing the Check Engine Light to illuminate.
- Stored Fault Codes: Using an OBD-II scanner, you can retrieve fault codes related to the speed sensor (e.g., P0500: Vehicle Speed Sensor Malfunction).
- Unusual Noises or Vibrations
- Unusual Noises from Transmission or Wheel Area: In some cases, speed sensor failure may cause abnormal noises or vibrations from the transmission or wheel area.
How to tell if the speed sensor is bad？
To determine if the speed sensor is damaged, you can start with a few things.
1. Dashboard anomalies: If the speedometer display is inaccurate, jumpy or completely out of whack, it could signal a speed sensor malfunction.
2.Shifting problems: Delayed, jerky or irregular shifting of the automatic transmission may be related to incorrect sensor data.
3.Cruise control failure: If the cruise control is not working properly or suddenly fails, it may be that the speed sensor is not providing accurate speed information.
4.Malfunction light on: An engine malfunction light or transmission malfunction light on the instrument panel may indicate a sensor problem.
5.Diagnostic tool test: Using an OBD-II diagnostic device to read the fault code can quickly locate if it is related to the speed sensor.
6.Physical inspection: Check for loose or broken sensor connecting wires, or signs of damage or corrosion on the sensor itself.

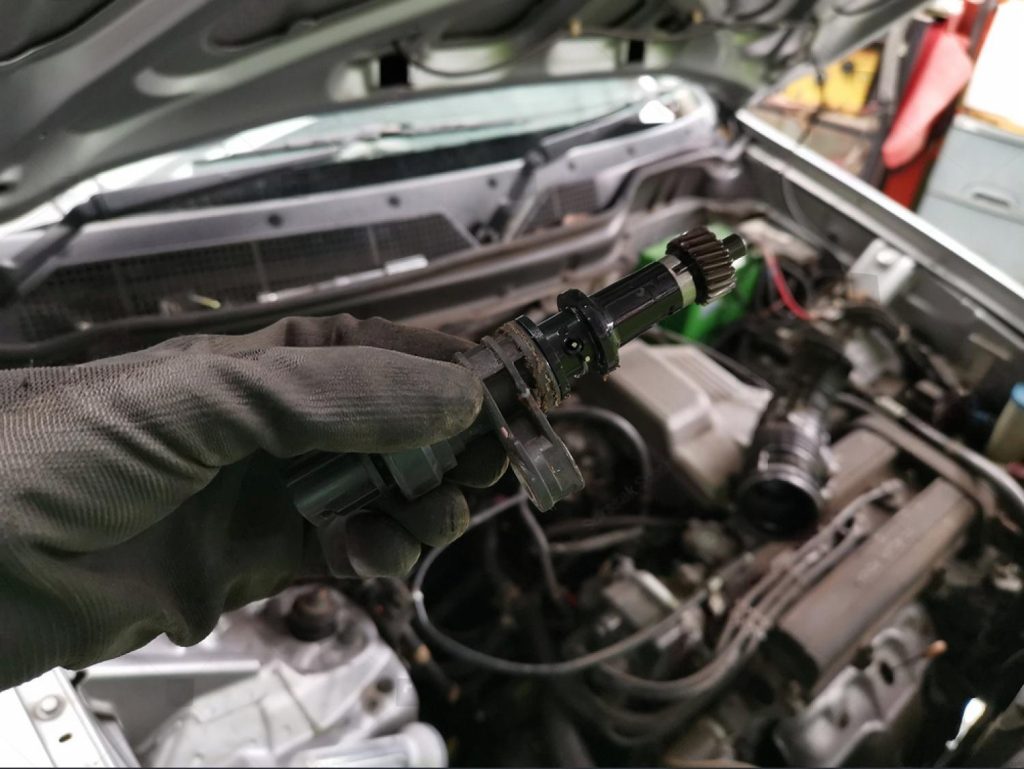

How to change a speed sensor？
The steps for replacing a speed sensor vary by model and sensor location, but in general, you can follow these steps:
- Ensure that the vehicle is turned off and the handbrake is tightened, have a new sensor, wrench, screwdriver and other tools ready.
- Locate the speed sensor and disconnect the vehicle from the power supply.
- Unplug the sensor’s electrical connector, loosen the fixing bolts with a suitable tool and carefully remove the old sensor.
- Align the new sensor to the mounting position, tighten the fixing bolts and reconnect the electrical connector. Ensure that the installation is secure and well sealed.
- Align the new sensor with the mounting position, tighten the fixing bolts and reconnect the electrical connector. Make sure the installation is secure and well sealed.
If you don’t have experience with this type of repair, or if you’re unfamiliar with the vehicle’s electrical system, it’s recommended to have a professional mechanic replace the sensor for you.
How to clean speed sensor？
The first three steps of how to clean the speed sensor are the same as “How to change the speed sensor”, so we will introduce you directly from the fourth step.
- Use a soft cloth or brush to remove dust and oil from the surface of the sensor, then spray an electronic component cleaner to thoroughly clean the sensor head and housing. Avoid using aggressive cleaners.
- Dry the sensor with a clean, soft cloth or air dry naturally to ensure complete dryness before installation.
- Put the sensor back in place, tighten the fixing bolts and connect the electrical connectors.
- Start the vehicle and check that the speedometer and transmission are working properly.
Cleaning the speed sensor can help in some cases, but if the sensor is faulty or worn out, you may need to replace it.
Conclusion
To prevent speed sensor failure, it is important to regularly check your vehicle’s electrical system and sensor connections. Clean the sensor surfaces regularly to avoid accumulation of dirt and oil.
Vehicle owners are also advised to carry out regular thorough vehicle inspections, especially after extreme weather or long-distance driving, to ensure that all components are in good condition, thus prolonging the service life of the speed sensor.
