How to Replace a Steering Rack: Rack and Pinion Steps, Safety Checks, and Fitment Notes
Replacing a steering rack, also called a rack and pinion assembly on many vehicles, is a safety-critical repair. It can involve tie rods, the steering shaft coupler, hydraulic lines or EPS connectors, rack centering, bleeding, scan-tool checks, and a wheel alignment. This guide explains the normal workflow and the checks that should happen before the car returns to daily driving.
Quick answer
A steering rack replacement usually means confirming the fault, safely raising the vehicle, disconnecting the tie rods and steering shaft, removing hydraulic lines or electrical connectors, replacing the rack, centering the assembly, bleeding or scanning the system if required, and completing a professional wheel alignment.
- Not a beginner repair: steering control, airbag clock spring position, suspension geometry, and hydraulic or electric assist can all be affected.
- Vehicle-specific information matters: torque values, lift points, subframe steps, bleeding procedures, and EPS calibration requirements vary by model.
- Final checks are mandatory: inspect for leaks, steering pull, warning lights, abnormal noise, loose fasteners, and uneven steering before normal driving.
Safety note
This article is a high-level planning guide, not a replacement for the factory service manual. Always confirm the exact procedure, torque specifications, fluid type, steering shaft instructions, EPS programming requirements, and alignment procedure for the vehicle you are working on. If the vehicle cannot be lifted and supported safely, or if the steering shaft, rack mounts, hydraulic lines, or EPS connectors are damaged or corroded, have the repair inspected by a qualified technician.
Before replacing the rack, confirm the problem
Do not replace the steering rack only because the steering feels heavy or noisy. A failing power steering pump, low fluid, air in the system, loose tie rods, worn ball joints, a seized U-joint, damaged control arms, or tire problems can create similar symptoms. Check the source of the noise, leak, play, or steering pull before ordering parts. If there is an open steering-related recall for the vehicle, check the VIN through an official recall lookup before repair planning [S2].| Symptom | Could point to the rack | Also check before ordering |
|---|---|---|
| Fluid leak near the center or ends of the rack | Rack seals, boots, hydraulic fittings | Power steering hoses, pump, reservoir, clamps, fluid type |
| Loose or delayed steering response | Internal rack wear, tie rod play, rack mount movement | Outer tie rods, inner tie rods, ball joints, control arm bushings |
| Vehicle pulls or steering wheel is off center | Rack centering issue, alignment issue, incorrect installation | Tires, suspension damage, alignment, brake drag |
| Heavy steering on one side | Rack internal restriction or EPS fault | Fluid contamination, pump pressure, steering shaft U-joint, EPS codes |
| EPS warning light after steering work | Electronic rack calibration, sensor, wiring, or programming issue | Battery condition, stored codes, connector damage, correct part number |
Steering rack, rack and pinion, and power steering rack: are they the same?
In many passenger vehicles, “steering rack” and “rack and pinion” refer to the same main steering gear. The pinion gear turns with steering input, and the rack bar moves left or right to steer the wheels. A “power steering rack” usually means the rack has hydraulic, electric-hydraulic, or electric assist. The replacement process is similar in concept, but the details change a lot between hydraulic power steering and electric power steering systems.Tools and parts checklist
Exact tools depend on the vehicle. Do not start until you know how the rack is accessed, whether the subframe must be loosened, and whether the vehicle needs hydraulic bleeding or EPS calibration.
| Category | Common items | Why it matters |
|---|---|---|
| Lifting and safety | Floor jack, rated jack stands, wheel chocks, eye protection, gloves | The car must be stable before anyone works under it. |
| Fasteners and steering links | Socket set, breaker bar, extensions, torque wrench, cotter pins if used | Rack mounts, tie rods, and steering shaft fasteners must be reassembled correctly. |
| Tie rod separation | Tie rod end puller or separator | A proper tool reduces damage to the knuckle and tie rod joint. |
| Hydraulic systems | Flare nut wrench, drain pan, correct fluid, new O-rings or sealing washers if required | Hydraulic fittings are easy to round and leaks often come from reused seals. |
| EPS systems | Scan tool or code reader if required, connector tools, battery support if needed | Some electric racks may require programming, calibration, or code clearing after installation [S3][S4]. |
| Fitment verification | VIN, OE number, left-hand/right-hand drive, steering type, connector count, tie rod style | An incorrect rack may physically fit poorly, leak, trigger codes, or create unsafe steering behavior. |
Hydraulic rack vs electric steering rack replacement
The largest difference is not the basic mounting position; it is what the rack connects to. A hydraulic power steering rack has fluid lines and must be bled after installation. An electric steering rack has wiring, sensors, and control electronics that may need scan-tool work, calibration, or programming depending on the vehicle [S3][S4].
| System type | Extra checks | Common risk |
|---|---|---|
| Hydraulic power steering rack | Fluid type, line condition, O-rings, flushing, bleeding, leak check | Air in the system, contaminated fluid, rounded fittings, reused seals |
| Electric-hydraulic rack or pump-assisted system | Fluid checks plus electrical connectors and possible programming | Mixing hydraulic and electrical faults during diagnosis |
| Electric power steering rack | Battery condition, connectors, stored codes, steering angle or torque sensor procedure | Installing a rack that needs calibration or is not correct for the vehicle |
| Manual steering rack | Mechanical fitment, tie rods, mounts, centering, alignment | Assuming it needs the same fluid or electrical steps as assisted systems |

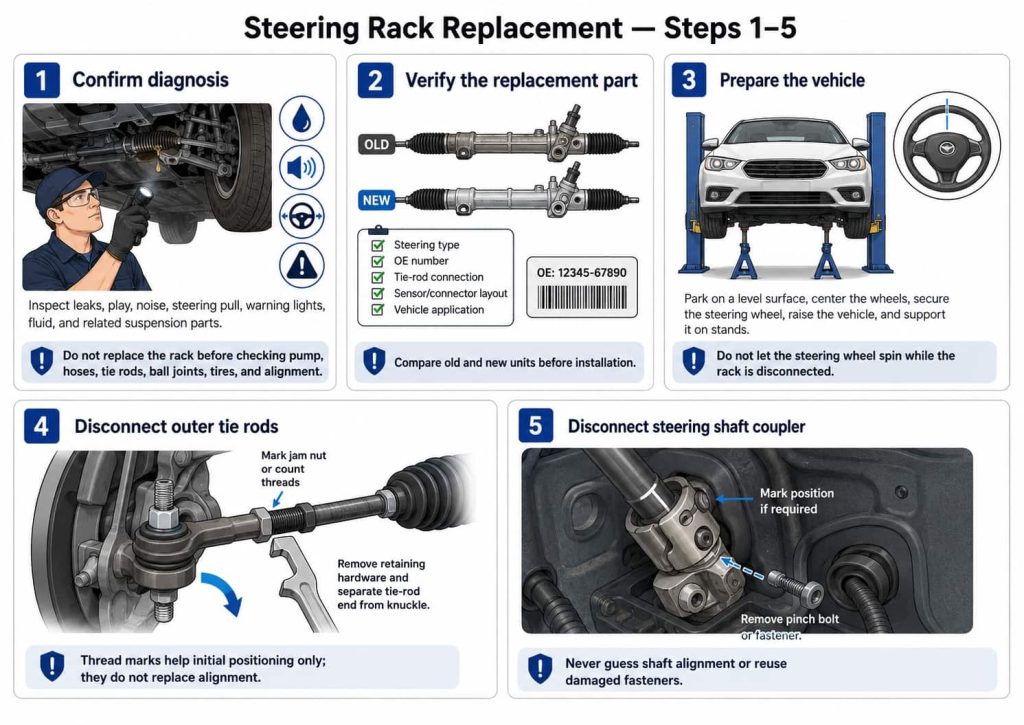

Steering rack replacement workflow
The exact order may change by vehicle, but the workflow below matches the common sequence used for rack and pinion replacement. Use it to plan the job and understand why shops charge significant labor for this repair.
| Stage | What usually happens | Important check |
|---|---|---|
| 1. Confirm diagnosis | Inspect leaks, play, noises, steering pull, warning lights, fluid, and related suspension parts. | Do not replace the rack until pump, hoses, tie rods, ball joints, tires, and alignment are considered. |
| 2. Verify the replacement part | Match steering type, OE number, tie rod connection, sensor/connector layout, and vehicle application. | Compare old and new units before installation whenever possible [S4]. |
| 3. Prepare the vehicle | Park on a level surface, center the wheels, secure the steering wheel, raise the vehicle, and support it on stands. | Do not let the steering wheel spin while the rack is disconnected, because clock spring damage is possible. |
| 4. Disconnect outer tie rods | Mark the jam nut or count exposed threads, remove retaining hardware, and separate the tie rod ends from the knuckles. | Thread marks help initial positioning only; they do not replace alignment. |
| 5. Disconnect steering shaft coupler | Access the coupler near the firewall or rack input shaft, mark position if required, and remove the pinch bolt or fastener. | Never guess steering shaft alignment or reuse damaged fasteners. |
| 6. Disconnect lines or connectors | Hydraulic racks need fluid lines disconnected; EPS racks need electrical connectors unplugged and protected. | Use a line wrench on hydraulic fittings and keep electrical connectors clean and undamaged. |
| 7. Unbolt and remove the rack | Remove rack mounting bolts, brackets, shields, and any required access parts. Some vehicles may need subframe support or partial lowering. | Follow the vehicle procedure for subframe, engine support, and rack removal angle. |
| 8. Transfer required parts | Transfer brackets, boots, heat shields, inner or outer tie rods, sensors, or fittings only if the replacement rack requires it. | Do not transfer worn parts without inspection. |
| 9. Center and install the new rack | Set the rack to its mechanical center, position it in the vehicle, reconnect mounts, shaft, tie rods, lines, or connectors. | Use OEM torque values and keep the steering wheel and rack aligned. |
| 10. Bleed, scan, align, and road-check | Bleed hydraulic systems, check fluid level, scan EPS systems if required, align the vehicle, then test carefully. | Full wheel alignment and final safety checks should happen before normal driving [S4]. |
Step-by-step overview
1. Confirm the rack is the likely fault
Inspect the steering rack boots, tie rods, hydraulic lines, pump, fluid level, steering shaft, tires, suspension joints, and stored EPS codes if applicable. If the steering rack is leaking internally, has excessive play, will not self-center correctly, or is confirmed as the source of assist problems, replacement may be required.2. Match the replacement rack before disassembly
Check the part by VIN or OE reference when available. Confirm hydraulic vs EPS, left-hand or right-hand drive, connector count, sensor layout, inner tie rod style, mounting points, and whether the unit is new, remanufactured, or used. Many wrong buys happen when a rack looks similar but has different fittings or electronics.3. Center the wheels and secure the steering wheel
Start with the front wheels straight. Secure the steering wheel in the centered position before disconnecting the steering shaft. This helps protect the clock spring and keeps the steering relationship easier to restore during reassembly.4. Raise and support the vehicle safely
Use verified lift points, wheel chocks, and rated jack stands on a solid surface. Remove underbody shields or access panels only as required. Never work under a vehicle supported only by a jack.5. Mark the tie rod reference and disconnect the outer tie rods
Count exposed threads or mark the jam nut position before loosening the outer tie rods. This helps place the new rack close enough for a careful trip to an alignment shop, but it does not set the final alignment. Use the correct separator tool to avoid damaging the steering knuckle.6. Disconnect the steering shaft coupler
The coupler or pinch bolt is often tight and difficult to reach. Use the correct tool angle and do not round the fastener. If the coupler is seized, damaged, or misaligned, stop and check the service procedure before continuing.7. Disconnect hydraulic lines or EPS connectors
For hydraulic racks, place a drain pan below the fittings and use a flare nut wrench where possible. Replace O-rings or seals if the service procedure requires it. For EPS racks, disconnect the battery only when required by the service information, protect connectors, and avoid pulling on harness wires.8. Remove the rack mounting hardware
Remove the rack mounts, brackets, and access parts in the order specified for the vehicle. Some racks slide out after the tie rods and shaft are disconnected; others need exhaust, stabilizer bar, or subframe clearance. If the subframe must be moved, support it properly and follow the service manual.9. Compare the old and new rack side by side
Before installation, compare length, mounting points, pinion shaft position, ports, connectors, boots, tie rod threads, and brackets. If anything does not match, confirm the part before forcing it into place.10. Center the new rack
A common method is to turn the rack from lock to lock, count the turns, then set it at the midpoint. The correct centering approach can vary, especially with EPS units, so check the vehicle procedure. Install the rack centered, then use alignment to finalize the steering wheel position.11. Reconnect the shaft, tie rods, lines, and wiring
Reconnect the steering shaft coupler, rack mounts, tie rod ends, hydraulic lines, or electrical connectors according to the vehicle procedure. Tighten fasteners to the specified torque and replace any one-time-use hardware if required.12. Bleed hydraulic systems or scan EPS systems
Hydraulic systems usually need fresh fluid and air bleeding after rack replacement. Some systems may require vacuum bleeding if air is trapped [S4]. Electric racks may require code clearing, steering angle sensor calibration, programming, or a relearn procedure depending on the part and vehicle [S3][S4].13. Complete alignment and final checks
After a steering rack replacement, a professional wheel alignment should be completed before normal driving. Marking thread positions is only a starting reference. After alignment, check for leaks, warning lights, steering pull, abnormal noise, uneven assist, and a steering wheel that does not return properly.After-install checklist
Use this checklist before the vehicle returns to regular driving.
| Check | What to confirm | Why it matters |
|---|---|---|
| Fluid level and leaks | Reservoir level, hose fittings, rack boots, line seals, pump area | Leaks or low fluid can damage the system and reduce assist. |
| Bleeding | No foamy fluid, bubbles, whining, or jerky assist on hydraulic systems | Air in the system can cause noise and inconsistent steering. |
| EPS scan | No active steering codes, warning lights, communication faults, or calibration errors | Some EPS racks may not function correctly until calibrated or programmed. |
| Steering shaft connection | Coupler fully seated, fastener installed, no binding or looseness | A loose or misinstalled coupler is a serious safety risk. |
| Tie rods and boots | Retainers installed, boots not twisted or torn, tie rod ends secure | Loose or damaged linkage can affect steering response. |
| Wheel alignment | Toe and steering wheel position corrected by alignment equipment | Alignment affects tire wear, steering stability, and predictability. |
| Low-speed test | Smooth left-right steering, no clunks, no pull, no binding | Problems are easier and safer to catch at low speed. |
Common mistakes when replacing a steering rack
- Ordering the wrong rack: similar-looking racks can differ by steering type, connector, sensor, shaft, port, or tie rod design.
- Letting the steering wheel spin: this can damage the clock spring or create steering angle problems.
- Skipping fluid flushing: debris from the old rack can remain in the system and shorten the life of the replacement rack [S4].
- Reusing damaged seals: hydraulic line leaks often appear after old O-rings or sealing washers are reused.
- Guessing torque values: steering and suspension fasteners must be tightened to the correct specification.
- Skipping alignment: thread marks are not accurate enough for normal driving after rack replacement.
- Ignoring EPS programming: some electric racks require calibration, coding, or scan-tool procedures [S3].
When you should not do this repair yourself
Hire a qualified repair shop if any of these apply:
- You do not have a safe way to lift and support the vehicle.
- The rack is buried behind the subframe or requires engine/subframe support.
- The vehicle has EPS and you do not have the required scan-tool access.
- Hydraulic fittings are rounded, seized, or leaking badly.
- The steering shaft coupler, tie rods, ball joints, or control arms are damaged.
- You cannot get a professional alignment immediately after the repair.
- The vehicle has an open steering-related recall or an unresolved safety complaint.
Replacement rack ordering checklist
For suppliers and repair planning, send enough information to avoid wrong fitment. A rack that is close but not exact can create leaks, warning lights, binding, or alignment problems.
| Information to provide | Example | Why it helps |
|---|---|---|
| Vehicle details | Year, make, model, engine, market, VIN if available | Steering racks often vary by production year, trim, and market. |
| Steering type | Hydraulic, electric-hydraulic, electric, or manual | Hydraulic and EPS racks are not interchangeable. |
| Drive side | Left-hand drive or right-hand drive | Rack layout and shaft position can differ. |
| OE number or casting number | Number from the old rack label or housing | Helps cross-check the correct replacement unit. |
| Connector and port photos | Clear photos of EPS plugs or hydraulic ports | Reduces wrong connector, sensor, or fitting selection. |
| Included components | Inner tie rods, boots, outer tie rods, seals, brackets | Prevents missing parts during installation. |
| Order requirement | Sample, MOQ, packaging, target market, warranty request | Useful for wholesale, repair chain, or distributor purchasing. |
Related guides
- Bad Steering Rack Symptoms — use this first if you are not sure the rack is the real cause.
- Steering Rack Replacement Cost — compare parts, labor, alignment, and calibration factors.
- Power Steering Pump vs Steering Rack — separate pump symptoms from rack or rack-and-pinion problems.
- Power Steering Pump Noise — check whether whining or groaning is pump-related before replacing the rack.
- How to Flush and Bleed a Power Steering System — useful after hydraulic rack or pump work.
Frequently asked questions
Can I replace a steering rack myself?
Some experienced DIYers can replace a steering rack, but it is not a beginner repair. You need safe lifting equipment, proper tools, a torque wrench, vehicle-specific service information, and access to alignment afterward. EPS-equipped vehicles may also require scan-tool procedures.
Is a steering rack the same as rack and pinion?
In many passenger vehicles, yes. “Rack and pinion” describes the steering gear design, while “steering rack” is the common shorter name. Some vehicles may use different steering gear designs, so always confirm the actual system before ordering parts.
Do I need an alignment after replacing a steering rack?
Yes. Marking tie rod threads can help with rough positioning, but it does not replace a wheel alignment. After rack replacement, alignment is needed to correct toe, steering wheel position, tire wear, and straight-line stability [S4].
How long does it take to replace a steering rack?
It depends on the vehicle design, corrosion, access, steering type, and whether the subframe or other components must be moved. A shop may complete some racks in a few hours, while difficult vehicles can take much longer. Use the service manual labor operation or a repair estimate for the specific vehicle.
Do I need to bleed the system after replacing a steering rack?
If the vehicle uses hydraulic or electric-hydraulic power steering, bleeding is normally required after the rack or hydraulic lines are opened. Use the correct fluid and the vehicle-specific procedure. Electric power steering racks may not need fluid bleeding, but they may need scan-tool checks or calibration.
What happens if the steering rack is not centered?
The steering wheel may be off center, turning range may feel uneven, EPS sensors may read incorrectly, or the vehicle may not steer predictably. Center the rack before installation and finish with alignment.
Can a bad power steering pump feel like a bad steering rack?
Yes. Low assist, whining noise, foamy fluid, or heavy steering can come from the pump, fluid, belt, hose restriction, or air in the system. Confirm the source before replacing the rack.
Should I replace tie rods with the steering rack?
It depends on the condition and what comes with the replacement rack. If inner or outer tie rods are worn, loose, damaged, or corroded, replacing them while the rack is out may be practical. Confirm included parts before ordering.
Can I drive after replacing the rack before alignment?
Only a cautious short trip to an alignment shop may be reasonable if the vehicle is safe, leak-free, and the steering feels normal. Do not use the car for normal driving before alignment and final inspection.
What should I send when asking for a replacement steering rack quote?
Send the year, make, model, VIN if available, steering type, drive side, OE number, photos of the old rack label, connector or port photos, quantity, target market, packaging needs, and warranty requirements.
