Power Steering Pump Guide
A power steering pump leak usually means hydraulic fluid is escaping from the pump shaft seal, reservoir connection, pump body, or one of the hose fittings near the pump. Before replacing the pump, confirm the leak source carefully: many “pump leaks” are actually pressure hose, return hose, reservoir, or steering rack leaks that happen to drip near the pump.
Quick answer
A power steering pump leak often shows up as red, amber, or brown fluid near the pump pulley, wet hose fittings, a low reservoir level, whining when turning, foamy fluid, or heavier steering at low speed. Clean the area first, inspect the pump and hoses, then confirm where fresh fluid appears. If fluid loss is fast, steering assist feels weak, or fluid is reaching the belt, avoid driving until the vehicle is inspected.
- Most likely pump-related points: shaft seal behind the pulley, pump body seam, reservoir-to-pump seal, pressure fitting, or return fitting.
- Most common confusion: fluid from a leaking hose or rack can run along brackets and make the pump look guilty.
- Best first check: clean the pump area, top up with the correct fluid if needed, run the engine briefly, and look for the first fresh wet spot.
Safety note
Power steering fluid leaks should not be ignored. Low fluid can reduce steering assist, make the pump noisy, and damage the pump if it runs dry. If the steering becomes suddenly heavy, the vehicle leaves a large puddle, or fluid is spraying onto the belt or hot engine parts, stop driving and have the system checked by a qualified mechanic.
First, confirm that your car actually has a hydraulic pump
Many older and hydraulic-assist vehicles use a belt-driven power steering pump. Some vehicles use an electro-hydraulic pump. Many newer vehicles use electric power steering (EPS), which may not use hydraulic fluid or a hydraulic pump at all. If your vehicle has pure EPS, a steering assist problem is usually diagnosed through electrical, sensor, motor, or rack-related checks rather than a fluid leak inspection.
When in doubt, check the owner’s manual, the under-hood reservoir cap, or the vehicle service information before adding fluid or replacing parts.
Common leak points around a power steering pump
A pump leak is not one single failure. The wet area tells you where to start, but it does not prove the part has failed until the system is cleaned and inspected.
| Wet area | Likely source | What you may notice | What to confirm before replacing the pump |
|---|---|---|---|
| Behind the pulley or at the front of the pump | Pump shaft seal | Fluid trails from the pulley area, belt contamination, whining, low fluid | Check whether fluid starts at the shaft seal or is being thrown there by the belt from another leak. |
| Top or side of the pump reservoir | Reservoir cap, reservoir body, or reservoir-to-pump O-ring | Wet reservoir, fluid smell, fluid splash after overfilling or foaming | Verify the fluid level hot/cold as specified and inspect for cracks, loose cap, or a hardened reservoir seal. |
| High-pressure line connection | Pressure hose fitting, sealing washer, O-ring, or cracked hose | Fresh fluid at a threaded fitting, leak worse after steering input | Make sure the hose fitting is not cross-threaded, loose, or leaking from the hose crimp. |
| Return hose connection | Return hose, clamp, or soft hose end | Wet low-pressure hose, slow seep, hose feels swollen or cracked | Inspect hose condition and clamp position before blaming the pump housing. |
| Fluid below the rack or inner tie rod boots | Steering rack leak | Wet rack boots, fluid at the front subframe, low fluid over time | Do not replace the pump until the rack, boots, and lines have been checked. |
Signs that the leak may involve the power steering pump
These symptoms do not prove the pump is the only failed part, but they make a pump-area leak more likely.
| Symptom | Why it happens | What to check next |
|---|---|---|
| Whining or groaning when turning | Low fluid or air in the system can make the pump noisy. | Check fluid level, look for foam, and inspect around the pump and hoses. |
| Steering feels heavy at low speed | The hydraulic system may not be building consistent assist pressure. | Confirm fluid level, belt condition, pump output, and whether the steering rack is binding. |
| Fluid on or below the pump | The shaft seal, pump body, reservoir seal, or line fitting may be leaking. | Clean the area, run the engine briefly, and look for the first fresh wet point. |
| Foamy or aerated fluid | Air may be entering through a loose hose, low fluid level, or a suction-side leak. | Inspect the return hose, reservoir connection, fluid level, and bleed procedure. |
| Belt squeal or fluid sprayed near the pulley | Fluid may be reaching the belt from the pump shaft area or another nearby leak. | Inspect belt condition and locate the exact fluid source before replacing parts. |
How to confirm a power steering pump leak
The safest useful check is a visual inspection. You are not trying to rebuild the pump on the car; you are trying to identify where the fresh fluid starts.
- Check the fluid type and level first. Use the fluid specified for the vehicle. Some systems use power steering fluid; some use ATF; some EPS systems use no hydraulic fluid.
- Clean the pump, reservoir, hoses, and nearby brackets. Old fluid makes diagnosis unreliable. Use a safe degreaser and let the area dry.
- Place clean cardboard under the front of the vehicle. This helps show the drip location after the vehicle sits.
- Start the engine and inspect with good lighting. Watch the pump shaft area, pressure fitting, return fitting, reservoir, and hoses. Do not put hands, clothing, or tools near moving belts.
- Turn the steering wheel gently if needed. A small steering input may build pressure and reveal a leak, but do not hold the wheel hard at full lock.
- Trace the first fresh wet spot upward. Fluid often runs downward and backward. The drip point is not always the failure point.
- Use UV dye or a shop inspection if the leak is hard to find. Dye testing can help separate a pump leak from a hose, rack, or reservoir leak.

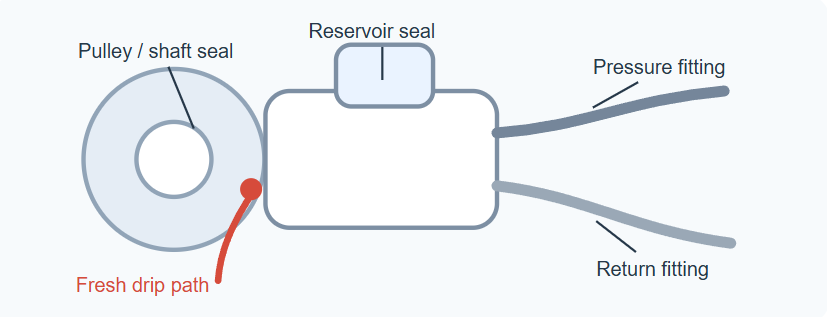

Power steering leak source map
Confirm the first fresh wet point before choosing pump, hose, rack, or reservoir repair.
Leak location guide: pump, hose, rack, or reservoir?
Use this table to narrow the diagnosis before you order parts.
| What you see | More likely source | Why it matters |
|---|---|---|
| Fluid is wettest directly behind the pump pulley | Pump shaft seal | The pump may need rebuilding or replacement, depending on vehicle design and parts availability. |
| Fluid starts at the metal pressure line or crimped hose end | Pressure hose or fitting | A hose leak can mimic a pump leak and may be the only failed part. |
| Fluid collects on the reservoir or under the cap | Overfilled fluid, wrong cap seal, cracked reservoir, or aerated fluid | Replacing the pump may not solve a reservoir or fluid-level problem. |
| Fluid appears inside the rack boots or at the center of the rack | Steering rack internal seal | The rack may be the source even if the pump reservoir is low. |
| Leak is worse only after steering input | Pressure-side hose, pump seal, or rack seal | Pressure testing or dye inspection may be needed to isolate the part. |
| Fluid is foamy and the pump whines after topping up | Air entering the system, low fluid, or a suction-side leak | Look for loose return hose connections and bleed the system according to service information. |
Can you drive with a leaking power steering pump?
It depends on the amount of fluid loss and how the vehicle feels. A small seep discovered during inspection is different from a fast leak that empties the reservoir or makes steering heavy.
| Situation | Risk level | Recommended action |
|---|---|---|
| Minor dampness, fluid level stable, no noise, steering normal | Low to moderate | Monitor closely and schedule inspection. Do not ignore it if the wet area grows. |
| Reservoir level drops, whining starts, or fluid foams | Moderate | Top up only with the correct fluid if needed, then inspect soon. Running low can damage the pump. |
| Steering becomes heavy, leak is fast, or belt is wet with fluid | High | Do not continue normal driving. Arrange repair or towing if steering assist is unreliable. |
| Fluid sprays, smoke appears, or steering assist changes suddenly | High | Stop the vehicle safely and get professional help. |
Repair options: what usually fixes the leak?
The correct fix depends on the actual leak point. A pump-area leak does not always mean the complete pump is bad.
1. Correct fluid level and bleed the system
If the fluid is low or aerated, the pump can whine even when the pump itself is not leaking internally. Use the specified fluid and follow the correct bleeding procedure. Do not overfill the reservoir; excess fluid can foam or escape through the cap.
2. Replace a leaking hose, clamp, O-ring, or sealing washer
If fresh fluid starts at a hose connection, repair the connection before replacing the pump. A high-pressure hose, return hose, or sealing washer can leak directly onto the pump body.
3. Replace or rebuild the pump when the pump itself is leaking
If the shaft seal, pump body, or reservoir-to-pump seal is the confirmed source, the pump may need a seal service, rebuild, remanufactured unit, or replacement. The right choice depends on vehicle design, parts availability, labor cost, and whether the pump is serviceable.
4. Treat stop-leak additives as temporary at best
Some additives may reduce minor seepage from aged seals, but they should not be treated as a permanent fix for a torn hose, cracked reservoir, damaged fitting, failing pump, or fast leak. If steering assist is noisy or inconsistent, inspect and repair the source rather than relying only on additive products.
Common wrong assumptions
- “Fluid under the pump means the pump is bad.” Not always. The pressure hose, return hose, reservoir, or rack can leak and drip near the pump.
- “A whining pump only means the pump failed.” Low fluid, trapped air, wrong fluid, a loose belt, or a suction leak can also make pump noise.
- “Topping off the fluid fixes the leak.” Topping off may protect the pump short term, but it does not repair the leak source.
- “All steering fluid leaks are safe to drive with.” A fast leak or heavy steering can create a control risk. Treat sudden steering changes as urgent.
- “Every vehicle has a power steering pump.” Many EPS vehicles do not use hydraulic fluid or a belt-driven pump.
Buying a replacement pump: details to confirm before ordering
If diagnosis confirms the pump is leaking, match the replacement carefully. The wrong pump can create fitment, hose, pulley, or pressure problems even when the part looks similar.
| Confirm this | Why it matters |
|---|---|
| Vehicle year, make, model, engine, and trim | Pump mounting, pulley alignment, and pressure rating can vary by engine and chassis. |
| Hydraulic, electro-hydraulic, or EPS system | A pure EPS vehicle may not use a hydraulic pump; an electro-hydraulic system may use a different unit. |
| Pulley type and whether the pulley is included | Some pumps are sold with a pulley; others require pulley transfer with the correct tool. |
| Reservoir included or separate | Some assemblies include the reservoir, while others reuse the original reservoir and seals. |
| Pressure and return port style | Fitting shape, thread, O-ring, and hose routing must match the vehicle. |
| OE number or supplier cross-reference | Numbers help reduce wrong-pump orders, especially for wholesale or fleet sourcing. |
For wholesale sourcing
For bulk replacement programs, confirm the pump type, pulley configuration, reservoir style, port design, OE or cross-reference number, and whether the supplier can support new or remanufactured options. For hydraulic steering systems, also check whether related hoses, reservoirs, and steering racks should be inspected together so the new pump is not blamed for an unresolved leak elsewhere in the system.
FAQ
Can a power steering pump leak?
Yes. A power steering pump can leak from the shaft seal, pump body, reservoir connection, or hose fittings near the pump. The exact source should be confirmed before replacing the pump.
Why is my power steering pump leaking?
Common reasons include worn seals, aged O-rings, cracked hoses, loose fittings, a damaged reservoir, incorrect fluid level, or contamination in the system. Sometimes the pump only appears to leak because fluid is running down from a nearby hose or reservoir.
What does a leaking power steering pump sound like?
It may whine or groan, especially when turning at low speed. However, the same sound can also come from low fluid, trapped air, belt issues, or another leak in the steering system.
Can I just add power steering fluid?
Adding the correct fluid may protect the pump temporarily if the level is low, but it does not repair the leak. If the fluid level keeps dropping, the leak source should be found and repaired.
Can stop leak fix a power steering pump leak?
Stop-leak products may slow very small seepage in some aged seals, but they are not a reliable fix for fast leaks, torn hoses, cracked parts, damaged fittings, or a failing pump.
Is a power steering pump leak dangerous?
It can be. A small seep may allow time for inspection, but a fast leak can reduce steering assist, damage the pump, or make the vehicle harder to control. Sudden heavy steering should be treated as urgent.
Can a bad power steering pump leak from the bottom?
Yes, but fluid dripping from the bottom of the pump can also come from above or from a nearby hose. Clean the area and trace the first fresh wet point before choosing the repair.
Should I replace the pump or the hose?
Replace the part that is actually leaking. If the wettest fresh point is at a hose crimp or fitting, the hose or seal may be the issue. If it starts at the pump shaft seal or pump body, the pump is more likely to need service or replacement.
