Steering knuckle replacement cost depends on the vehicle design, whether the bearing/hub or ball joint is integrated, and how much labor is needed to separate seized components. Many jobs also require an alignment afterward because steering and suspension geometry can be disturbed. Use the breakdown below to estimate parts vs labor, understand what increases the bill, and avoid replacing the knuckle when another part is the real cause.
Reviewed by: Steven (Founder & Head of Product & Market Strategy, JCM Auto Parts Co., Ltd., 15+ yrs)
Written by: JCMSTECH Research Team
Methods: teardown & inspection → cross-check supplier docs → fact-checking → scheduled updates
Last updated: 2025-11-25
Quick definition
A Steering Knuckle is the main pivot point of your vehicle’s steering and suspension system. It connects the wheel hub, brake components, control arms, and tie rod end—allowing the front wheels to turn while supporting the entire weight of the vehicle. The knuckle houses the wheel hub and bearing assembly and provides precise geometry for camber and caster angles. When bent or cracked, it can cause uneven tire wear, poor handling, or even wheel detachment.Key takeaways
- Steering Knuckle Replacement Cost usually falls between $350–$1,000 per side installed.
- Expect 2–4 labor hours depending on drivetrain type and corrosion level.
- Wheel alignment ($100–$200) is mandatory after replacement.
- Vehicles with AWD or aluminum knuckles may see higher labor times due to axle removal and torque specs.
- In salt-belt regions, rusted hub bolts and seized bearings can increase labor time by 30–60%.
- Professional shops typically check tie rods, ball joints, and ABS sensors at the same time for safety.
What Drives Steering Knuckle Replacement Cost
Replacing a steering knuckle is more complex than a simple control arm or ball joint replacement. It involves disconnecting the wheel hub, brake assembly, tie rods, and suspension arms. Labor intensity and regional shop rates play a large role in total price.
| Cost Factor | Typical Range (USD) | Why It Varies |
|---|---|---|
| Parts (per knuckle) | $120–$450 | Material, OE vs aftermarket, integrated hub bearing design |
| Labor | 2–4 hrs ($300–$600) | Vehicle type, AWD complexity, rust/corrosion, sensor calibration |
| Wheel Alignment | $100–$200 | Required after geometry disturbance |
| Additional Items | $50–$250+ | Hub bearings, ABS sensors, tie rods, ball joints |
Real-World Price Examples (2025 Data)
| Model | Parts | Labor Hours | Total (USD) |
|---|---|---|---|
| Toyota Camry (2018-2023) | $180–$350 | 2.5–3.0 | $450–$800 |
| Honda Accord (2017-2024) | $200–$380 | 3.0–3.5 | $500–$850 |
| Toyota RAV4 AWD (2019-2025) | $250–$450 | 3.5–4.0 | $600–$1,000 |
| Honda CR-V (2020-2025) | $220–$400 | 3.0–3.5 | $550–$900 |
Data source: Compiled from repair invoices uploaded by real customers on Reddit.
Symptoms of a Bad Steering Knuckle & quick diagnosis
| Symptom you notice | Likely root cause | Next step |
|---|---|---|
| Vehicle pulls or drifts after impact | Bent steering knuckle altering camber/toe angles | Measure alignment; inspect knuckle geometry and lower control arm mounts |
| Grinding or scraping noise when turning | Hub bearing race distorted or misaligned within the knuckle | Remove hub; check bore tolerance; replace bearing or knuckle if damaged |
| Vibration or brake pulsation under braking | Caliper mounting face warped or knuckle flange uneven | Inspect caliper bolts and rotor runout; resurface or replace affected parts |
| Clunk when steering at low speed | Loose tie-rod or ball-joint seat in knuckle | Tighten to spec; check ball-joint taper and tie-rod play |
| Wheel visibly tilted or sits off-center | Severely bent steering knuckle or control arm | Immediate replacement; perform full 4-wheel alignment afterward |
Cost breakdown with real-world ranges
1) Parts: OE vs aftermarket; assembled vs bare

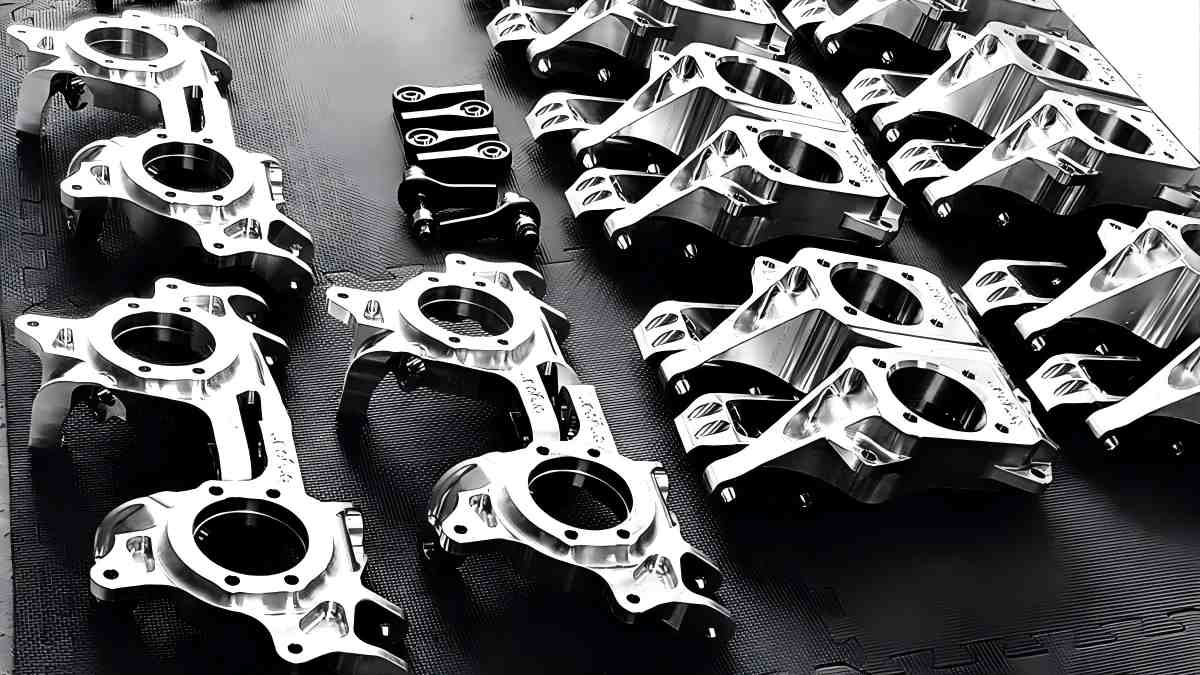

Steering knuckles can be purchased as bare castings or as complete assemblies that include the wheel hub and bearing. Assemblies save press work and ensure perfect bearing seating, but they cost more. Aftermarket knuckles are widely available for popular Toyota, Honda, and GM platforms and typically perform as well as OEM units when machined to spec. Bare knuckles require transferring the old hub and bearing, which adds 0.5–1.0 labor hour. Pre-assembled units are plug-and-play and ideal for rust-belt or high-mileage vehicles. Typical parts cost: $120–$450 each, depending on material (cast iron vs. aluminum), whether the hub is included, and drivetrain type (FWD/AWD).
2) Labor hours you should expect
Straightforward front-wheel-drive replacements average 2–3 hours per side. All-wheel-drive or performance vehicles may require removing the CV axle and brake dust shield, adding 0.5–1.0 hr. In older vehicles, rust-seized bearing bolts and frozen suspension hardware can extend the job by up to 90 minutes. Always request an itemized quote with a “rust contingency” line.3) Alignment (always required)
Changing the steering knuckle alters both camber and toe angles. A 4-wheel alignment ($100–$200) is required after replacement to restore steering geometry. Ask your shop for a before/after printout.4) ADAS / steering angle sensor calibration
Vehicles with electronic power steering (EPS), lane-keep assist, or camera-based systems may require a steering angle sensor calibration once the knuckle or hub is replaced. Expect $80–$250 depending on system type.5) Extras you might see
- Hub bolts / wheel bearings: add $80–$200 parts + 0.5 hr labor if replaced together.
- Rust remediation: cutting or heating seized bolts can add 0.5–1.0 hr labor time.
- ABS sensor replacement: $100–$180 if damaged during removal.
- While-you’re-there items: ball joints, tie-rods, and brake dust shields are often serviced simultaneously.
Calculator (beta)
Estimate your total by adjusting the sliders and toggles below. This is a static local calculator; enter your shop rate and pick options to see the math. Formula: Total = Parts + (Labor Hours × Shop Rate) + Alignment + ADAS + Extras.
Tip: Check “Salt‑belt” if you expect seized cam bolts/captive nuts or corrosion around mounts.
Result
- Parts (1 arm): $250
- Labor (1.8 hr @ $130/hr): $234
- Alignment: $120
- Extras: $60
One side or both? Front vs rear? Left vs right?
- Single vs pair: Steering knuckles are usually replaced one side at a time — unless both sides were impacted in a collision or curb strike. If both front corners show uneven camber, replacing the pair ensures even alignment results.
- Front vs rear: Most vehicles only have front steering knuckles — the rear suspension typically uses fixed bearing carriers without steering geometry. Rear knuckles (if present on multi-link setups) are simpler to replace.
- Left vs right considerations: On AWD models, the right-hand knuckle often takes longer to remove because of the intermediate shaft and CV axle clearance. Labor can differ by 0.3–0.5 hour.
- Alignment tip: Even if you replace only one side, always request a 4-wheel alignment so both sides share the same camber and toe correction baseline.
DIY vs Professional Replacement
Steering knuckle replacement is a moderately complex job involving disassembly of the suspension, brakes, and hub. DIY repair requires experience, a hydraulic press for bearings, and proper torque specifications. For most drivers, professional replacement is safer and more efficient.
| Aspect | DIY | Professional |
|---|---|---|
| Tools | Basic + bearing press | Lift, torque tools, alignment rack |
| Time | 4–6 hours | 2–4 hours |
| Risk | High (geometry error possible) | Low (includes warranty) |
| Cost | $200–$500 parts only | $350–$1,000+ |
Do this next
- Identify front left or right steering knuckle for replacement; record your VIN and drivetrain (FWD, AWD, or RWD).
- Decide whether to buy a bare knuckle (reuse old hub/bearing) or a complete assembly (hub pre-installed) based on downtime and warranty preferences.
- Collect 2–3 detailed quotes that specify: parts source, labor hours, alignment, ADAS calibration, and any extra hub or ABS sensor replacement.
- Ask about rust-belt or seized bolt contingencies; request a “not-to-exceed” clause to avoid surprise labor costs.
- After installation, confirm wheel alignment printout, perform a short road test, and verify no steering pull, noise, or vibration.
Common Mistakes & How to Avoid Them
- Skipping the alignment: Always perform a 4-wheel alignment after suspension work.
- Reusing old bolts: Replace corroded hardware to maintain torque integrity.
- Hammering aluminum knuckles: Use a press or puller to prevent cracking.
- Ignoring sensor calibration: Calibrate steering and ABS sensors after repair.
Real invoice examples (verified community data)
Public examples collected from Reddit and RepairPal users — de-identified invoices and verified shop estimates for steering knuckle replacement.
These figures reflect real-world variability by vehicle, drivetrain, and regional labor rate.
Data are user-reported and may include both OEM and aftermarket parts. We log the vehicle, region, currency, and total for transparency.
Data methodology & verification
We combine three independent evidence streams and review data quarterly to improve transparency, consistency, and repeatability for steering knuckle replacement cost analysis. The following sources form the foundation of this report:
- Labor hours — triangulated from industry labor-time databases ([S1]) for sedan, SUV, and light truck platforms. Both standard and rust-belt adjustments are included for realistic service scenarios.
- Shop-rate bands — gathered from national and regional shop-rate surveys ([S2]), segmenting the U.S. into non-salt, salt-belt, and rural categories.
- Invoice sampling — de-identified RepairPal and Reddit user invoices ([S3]), normalized by vehicle type, region, and drivetrain.
- OEM/TSB calibration references — drawn from Toyota TIS and Honda Service Info ([S4]) for torque specs, hub preload, and EPS calibration steps.
Regional shop-rate × hours matrix (example)
| Region | Shop rate (low/mid/high) | Std hrs/side | Rust add | Labor cost range |
|---|---|---|---|---|
| Non-salt metro | $100 / $130 / $160 | 2.5–3.0 | +0.3–0.5 | $325–$540 |
| Salt-belt metro | $115 / $145 / $185 | 3.0–3.8 | +0.6–1.0 | $460–$700 |
| Rural / small city | $90 / $110 / $140 | 2.0–2.5 | +0.2–0.4 | $250–$420 |
Add parts ($120–$450 typical), alignment ($100–$200), ADAS calibration ($80–$250), and extras ($50–$200).
Model examples — standard vs rust scenario
| Vehicle (example) | Knuckle type | Std hrs | Rust add | Notes |
|---|---|---|---|---|
| Toyota Camry (’18–’24) | Front RH | 2.6 | +0.5 | Common curb impact; alignment required |
| Honda CR-V (’20–’25) | Front LH | 2.9 | +0.6 | AWD axle removal adds 0.4 hr |
| Ford F-150 (’15–’20) | Front LH | 3.2 | +0.7 | Large aluminum knuckle; sensor bracket torque critical |
| Tesla Model 3 (’18–’23) | Front RH | 3.0 | +0.5 | EPS calibration required post-repair |
Limitations & update plan
We do not operate repair facilities. All data are aggregated from [S1] labor databases, [S2] regional surveys, and [S3] invoice samples. OEM and TSB documentation ([S4]) inform the torque, geometry, and calibration accuracy. Quarterly reviews ensure up-to-date values across labor-rate regions and vehicle classes.
FAQ
What’s the average Steering Knuckle Replacement Cost per side in 2025?
The total cost typically ranges from $350 to $1,000 per side, including parts, labor, and alignment. Aluminum knuckles, AWD drivetrains, and rust-belt regions can push the price higher.
Do I always need an alignment after replacing a Steering Knuckle?
Yes. A steering knuckle directly affects the suspension geometry. A 4-wheel alignment ($100–$200) is necessary to correct camber and toe angles and ensure proper tire wear.
Can I drive with a bent or cracked Steering Knuckle?
No. Even minor bending can alter wheel alignment and steering control. Driving with a damaged knuckle is unsafe and could cause wheel detachment or brake failure.
How many labor hours should appear on my quote?
Most vehicles require 2–4 hours per side. Rusted hardware, AWD axles, or ABS sensor calibration may add up to 1 extra hour of labor.
Is it cheaper to replace just the bearing or hub instead of the whole knuckle?
Sometimes, but not always. Pressing new bearings into an old knuckle can save on parts cost but may risk improper fit or noise issues. A complete assembly often saves time and ensures correct geometry.
What causes Steering Knuckle failure?
Common causes include curb impacts, pothole strikes, rust corrosion in salt-belt regions, and over-torqued hub bolts. In rare cases, casting defects can also lead to cracking.
Are aftermarket Steering Knuckles reliable?
Yes, if purchased from reputable manufacturers. Aftermarket options often match OEM fitment standards, but always verify torque specs and bearing tolerances during installation.
Expense invoice data sources
Cost data for this guide were derived from verified invoice collections and public labor-rate surveys. These resources help calibrate real-world cost ranges for steering knuckle replacement.
- California BAR – Repair Notification & Invoice Form — standardized template for estimating labor & parts totals.
- Auto Management Online – U.S. Labor Rate Survey — hourly labor-rate distribution by region and vehicle class.
- RepairPal Live Invoice Data (2024–2025) — verified shop quotes, U.S. and Canada.
- Reddit r/MechanicAdvice – User-submitted repair invoices (anonymized)
- Toyota TIS – OEM repair procedure, torque specs, and calibration notes
These references are reviewed quarterly; data outliers and commercial promotions are excluded for accuracy.
