Introduction: The Hidden Hero in Your Steering System
The tie rod is an essential part of your vehicle’s steering system. It connects the steering rack to the steering knuckle, allowing your front wheels to pivot smoothly as you turn the steering wheel. Without properly functioning tie rods, maintaining precise steering and alignment would be impossible.
Without properly functioning tie rods, your car simply cannot steer accurately. In this article, we’ll explore what a tie rod is, how it works, common failure symptoms, replacement steps, and expert tips to keep it in good shape.
Whether you’re an automotive enthusiast or a professional technician, this comprehensive guide will help you fully understand the importance of this essential steering component.
What Is a Tie Rod?
A tie rod is a slender threaded mechanical linkage. When you turn your steering wheel, hundreds of mechanical movements happen in milliseconds. Its primary role is to transfer motion from the steering system to the wheels, allowing you to control the vehicle’s direction.
When you turn the steering wheel, the steering rack pushes or pulls on the tie rods. The tie rods then pivot the wheels left or right, maintaining correct alignment and handling precision.
In short:
The tie rod is part of the steering linkage, not the suspension system.
It controls the angle and direction of the front wheels.
It ensures that both front wheels turn at synchronized angles for stable driving.
Why Tie Rods Matter for Steering Safety
Though small in size, tie rods play a vital role in every turn you make. They connect your steering rack to the wheel knuckle, converting steering wheel movement into precise wheel angles. Without them, your vehicle simply couldn’t steer safely.
- Critical for control: Tie rods ensure that steering input translates directly into wheel motion. A worn tie rod makes your steering loose and unpredictable.
- Essential for alignment: By maintaining the correct toe angle, tie rods prevent uneven tire wear and poor handling on the road.
- Improves ride stability: Working together with the suspension, they reduce road vibrations and keep your car stable, even on uneven surfaces.
How a Tie Rod Works in the Steering System

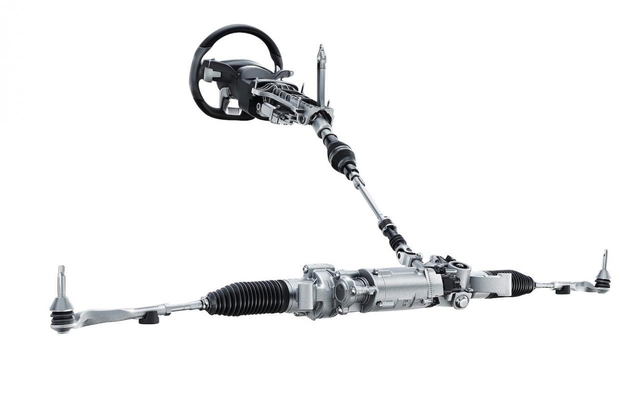

In modern rack-and-pinion steering systems, the tie rod plays a direct role in translating steering input to wheel movement. Here’s how it functions step by step:
-
You turn the steering wheel.
The rotation moves the steering shaft connected to the pinion gear. -
The pinion gear engages the steering rack.
The rack slides laterally, pushing or pulling the tie rods attached at both ends. -
Tie rods move the steering knuckles.
Each tie rod end is attached to the steering knuckle via a ball joint. As the rack moves, the ball joint allows smooth, flexible motion without binding. -
Wheels turn.
The wheels pivot precisely based on the steering input.
This seemingly simple motion relies on the tie rod’s perfect mechanical integrity. If a tie rod wears out, even slightly, the result is sloppy steering, wandering, and uneven tire wear.
To see how tie rods work in real-world steering systems, explore our guide on car tie rod applications explained.
The Two Main Types of Tie Rods
There are two primary types of tie rods found in modern vehicles: inner tie rods and outer tie rods. Both are essential for steering accuracy but serve slightly different purposes.
Inner Tie Rod
-
Connects directly to the steering rack or center link.
-
Usually protected by a rubber boot (called a rack boot) that keeps dirt and debris out.
-
Responsible for transmitting the push-and-pull motion from the rack to the outer tie rod.
-
Worn inner tie rods cause “loose steering” or delayed wheel response.
Outer Tie Rod
-
Connects the inner tie rod to the steering knuckle.
-
Equipped with a ball-and-socket joint that allows vertical and horizontal movement.
-
Easier to inspect visually for damage.
-
Worn outer tie rods often cause clunking noises, vibration, or wheel misalignment.
Want to understand more about the outer tie rod ends and how often to replace them? Read our in-depth article on outer tie rod ends and replacement timing.
A standard steering setup includes both inner and outer tie rods on each side of the vehicle, working together to ensure precise wheel angle and proper alignment.
Common Symptoms of a Bad Tie Rod
Tie rods are subject to constant mechanical stress, dirt, and road shock. Over time, wear is inevitable. Recognizing the symptoms early can save you from costly repairs or dangerous driving conditions.
Here are the most common signs that your tie rod may be failing:
Unusual Tire Wear
When a tie rod becomes loose or bent, it disrupts the wheel alignment. This leads to uneven tire wear, especially on the inner or outer tread edges.
Steering Wheel Vibration
A worn tie rod end can cause excessive play in the steering linkage, leading to vibrations that increase with speed or during turns.
Loose or Wandering Steering
If your car feels like it’s “drifting” or requires constant correction, it’s often due to excessive play in the tie rods.
Clunking or Knocking Noise
When the joint inside the tie rod end wears out, it may produce a knocking sound when you go over bumps or turn the steering wheel.
Wheel Misalignment
A bad tie rod throws off the vehicle’s toe angle, making your steering wheel appear off-center even when driving straight.
Ignoring these signs can lead to complete tie rod failure — potentially causing a loss of steering control, which is extremely dangerous.
If you notice any of these issues, you’ll find more detailed explanations in our guide on
symptoms of bad tie rods.
How to Diagnose a Worn Tie Rod
You don’t always need specialized tools to detect tie rod issues. Follow these simple steps:
-
Lift the vehicle safely using a jack and support it with jack stands.
-
Grab the tire at the 3 and 9 o’clock positions. Wiggle it back and forth.
-
Excessive play usually points to a bad tie rod or steering linkage.
-
-
Inspect visually.
Look for torn boots, leaking grease, or corrosion at the ball joint. -
Check alignment and tire wear.
If your vehicle pulls to one side or tires wear unevenly, suspect tie rod problems. -
Listen for clunks.
During a slow-speed turn or when braking lightly, knocking sounds often originate from tie rod ends.
If you’re uncertain, a mechanic can perform a dry park test — a diagnostic procedure that isolates steering components while the car is stationary.
How to Replace a Tie Rod (Overview)
Replacing a tie rod isn’t overly complex, but it requires mechanical precision and safety awareness. Below is a simplified overview of the process used by professional mechanics.
Tools & Supplies
-
Jack and jack stands
-
Wrenches and sockets
-
Tie rod end puller or separator
-
Torque wrench
-
Wheel alignment tools (or professional service)
Steps Overview
-
Loosen the wheel lug nuts and lift the vehicle.
-
Remove the wheel and locate the tie rod assembly.
-
Loosen the jam nut connecting inner and outer tie rods.
-
Remove the cotter pin and castle nut from the tie rod end.
-
Use a puller to separate the tie rod end from the steering knuckle.
-
Unscrew the old tie rod and install the new one, matching the same length to maintain approximate alignment.
-
Tighten to manufacturer torque specifications and reinstall the cotter pin.
-
Reinstall the wheel and lower the vehicle.
-
Get a professional wheel alignment immediately after replacement.
⚠️ Important:
Even a small difference in tie rod length can cause severe toe misalignment, leading to uneven tire wear or unstable steering.
Looking for trusted brands? Check out our list of top 10 outer tie rod end suppliers worldwide.
How Much Does Tie Rod Replacement Cost?
Tie rod replacement costs depend on the type of vehicle, parts quality, and labor rates. Here’s a typical breakdown:
| Vehicle Type | Average Cost (Parts + Labor) |
|---|---|
| Compact Car | $150 – $300 |
| Mid-size Sedan | $250 – $400 |
| SUV / Pickup | $350 – $600 |
| Luxury / Performance Car | $600+ |
Replacing both inner and outer tie rods may double the labor time. Always ask your shop whether a wheel alignment is included — it’s mandatory after any steering component replacement.
Maintenance Tips to Extend Tie Rod Lifespan
Even though tie rods are durable, you can significantly extend their life with simple preventive care:
-
Avoid hitting curbs and potholes. Sudden impacts can bend tie rods or damage threads.
-
Check for torn dust boots — replace them before water or salt gets inside.
-
Grease serviceable tie rod ends every 10,000 miles if applicable.
-
Inspect steering components whenever you rotate tires or replace brakes.
-
Perform wheel alignment once a year or after any suspension work.
These steps help preserve not only your tie rods but your entire steering and suspension system.
FAQs About Tie Rods
Q1: What happens if a tie rod breaks while driving?
If a tie rod completely breaks, you will lose steering control of the affected wheel — this can cause immediate loss of control and a serious accident. Stop driving immediately and tow the vehicle.
Q2: Can I drive with a bad tie rod?
You should not. Even a slightly worn tie rod can worsen quickly, compromising steering precision and safety.
Q3: Do tie rods affect wheel alignment?
Yes. Tie rods control the “toe” angle of your wheels. Any looseness directly alters alignment, leading to poor handling and tire wear.
Q4: How long do tie rods last?
Typically 80,000 to 120,000 miles, depending on road conditions and maintenance.
Q5: Are tie rods part of the suspension?
No. They are part of the steering system, although they connect to suspension components.
Conclusion: Small Component, Major Safety Role
The tie rod may look like a simple rod with a ball joint, but it’s a cornerstone of precise steering control. It ensures that every steering wheel movement translates accurately into wheel motion.
Neglecting tie rod maintenance can cause poor handling, uneven tire wear, or even complete loss of control. By understanding its function, recognizing early warning signs, and replacing it when necessary, you’re ensuring your car’s steering system remains safe, smooth, and reliable.
If you hear unusual steering noises, feel looseness, or notice uneven tire wear — don’t delay. Have your tie rods and alignment checked by a certified technician. It’s one of the simplest and most important safety inspections you can perform.
